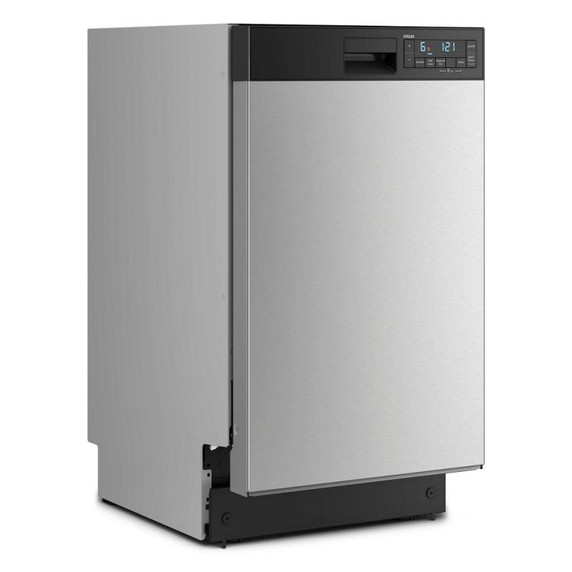

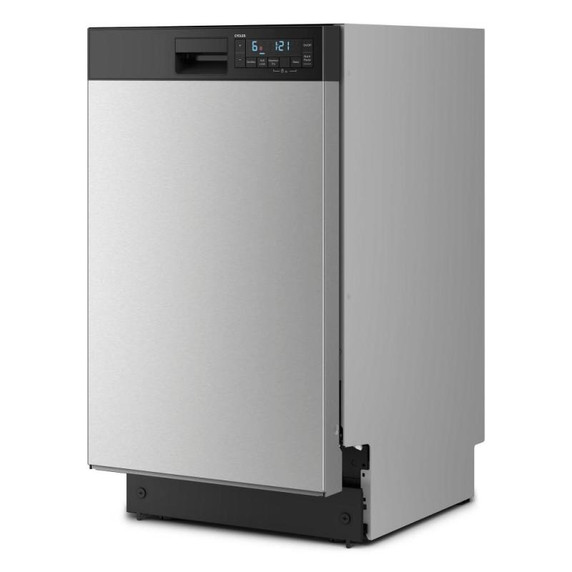

Whirlpool® 18" Stainless Steel Dishwasher with Half Load Cycle and Triple Spray Arms - 48 dBA WDFS5118SS

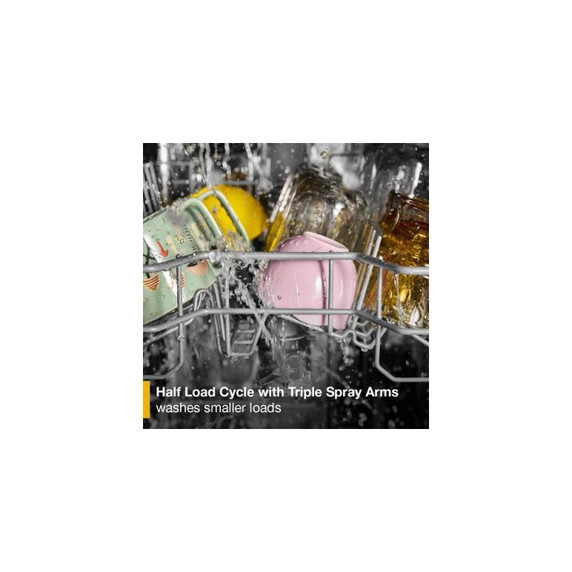

Half Load Cycle with Triple Spray ArmsHandle small loads with the Half Load Cycle. Designed with an extra dedicated spray arm* for a top rack only cycle. *Compared to WDF518SAHM
1 Hour Quick Wash CycleClean dishes in just under an hour with a 1 Hour Quick Wash Cycle that takes care of plates and glasses when you need them done in a hurry.
Energy Star® CertifiedENERGYSTAR® certified models exceed government standards to help save money on your utility bills.

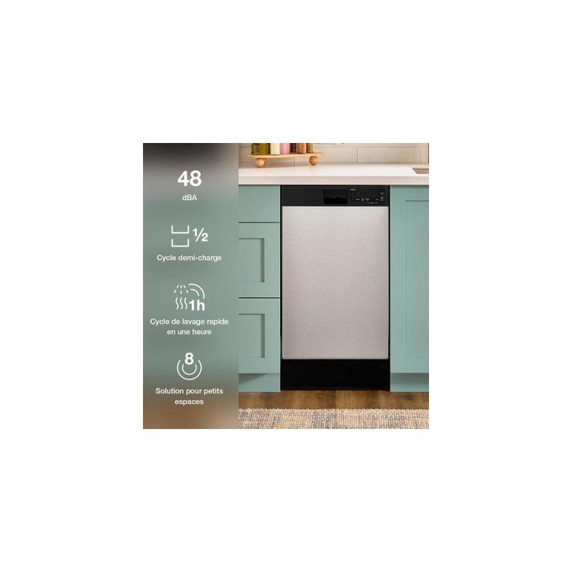

48 dBA Sound Level RatingRun your dishwasher without disrupting your space with an updated design and improved sound rating.*
*From 50 dBA on WDF518SAHM to 48 dBA on current model.

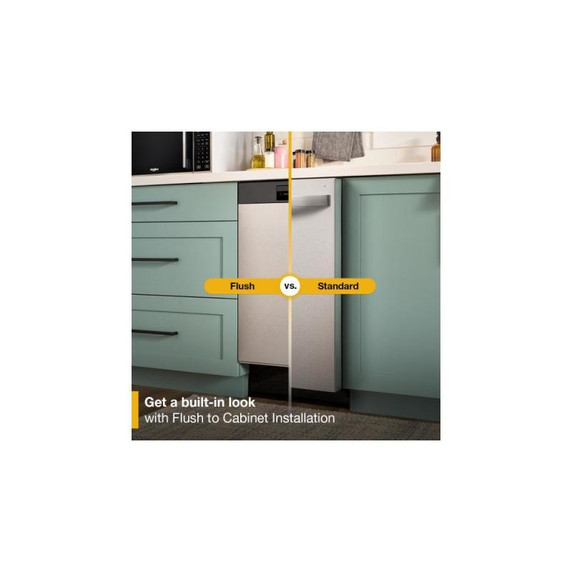

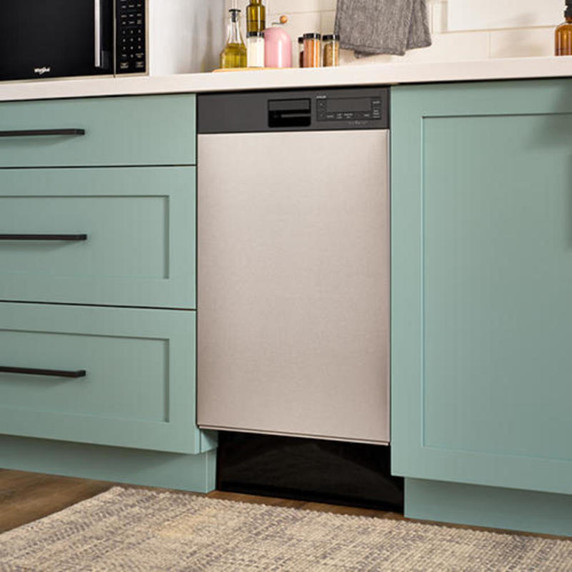

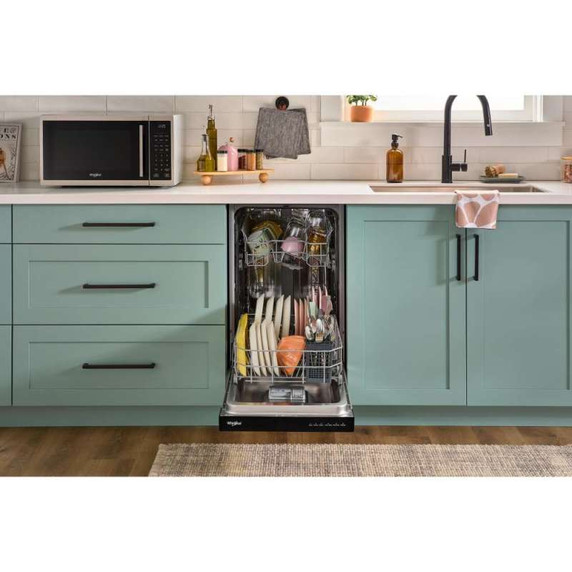

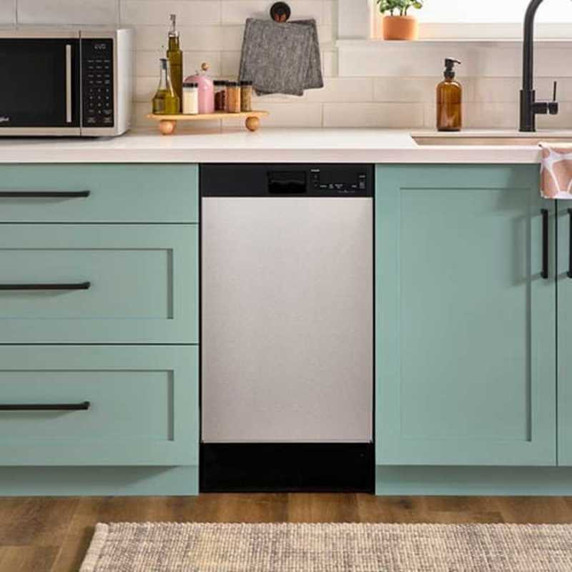

Flush to Cabinet InstallationGet a built-in look with a dishwasher that sits flush with your cabinets.
Small Space SolutionFit 8 place settings in this compact dishwasher without sacrificing cabinet space in your kitchen.

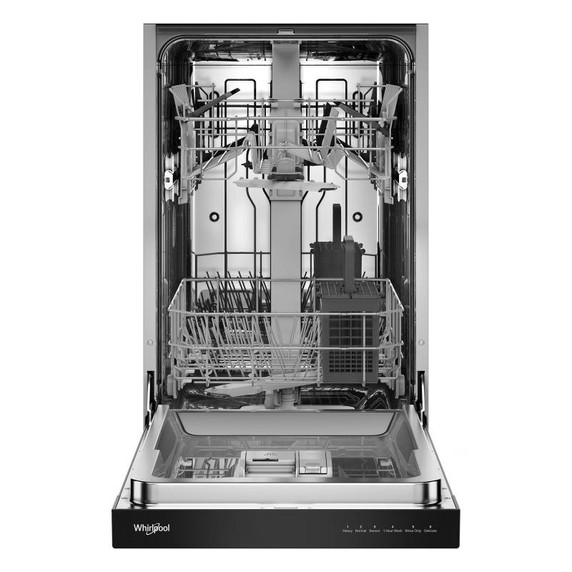

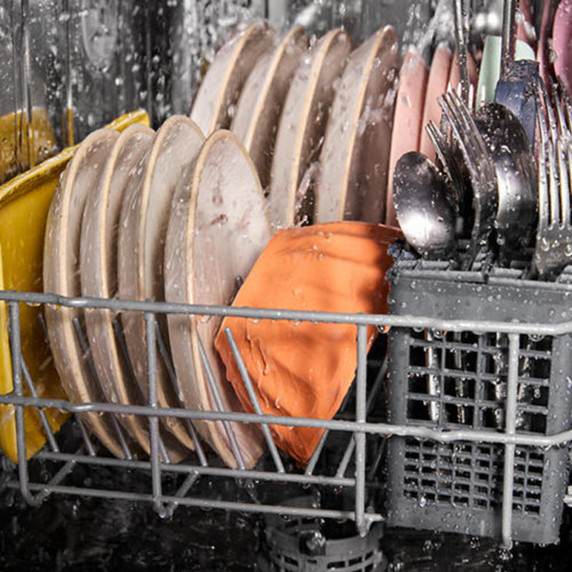

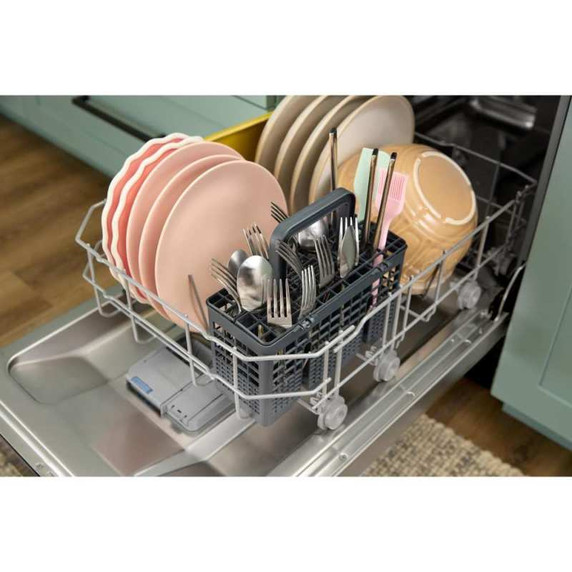

Flexible CapacityWith a movable silverware basket, adjustable rack, adjustable cup shelf, and adjustable tines, you'll find the flexible space you need for water bottles, casserole dishes, and other odds and ends your family piles up.
--
Heavy CycleThe Heavy Cycle provides extra wash time to take care of heavily soiled messes on hard-to-clean dishes.
Normal CycleUse the Normal Cycle for average amounts of food soil to clean up leftover messes from your day-to-day meals.
Sensor CycleThe Sensor Cycle determines how dirty dishes are and adjusts the cycle as needed to make sure dishes come out clean.
Rinse Only CycleHelp prevent food from drying on dishes using minimal water and no detergent with the Rinse Only Cycle.
Delicate CycleCare for glassware and china with lower wash temperatures and gentle wash action with the Delicate Cycle.
SanitizeUse Sanitize to clean dishes by eliminating 99.999% of food soil bacteria.
Maximum Heat DryAdd a boost of heat to your drying cycle with the Maximum Heat Dry Option.
For the best results, pair with rinse aid.
DelayUse Delay to delay the start of the cycle up to 24 hours to make sure dishes are clean and dry when you need them.
Leak DetectionIf a leak is detected, the unit displays an error code before stopping the cycle to drain any remaining water.
Controls
Control TypeElectronic
End Of Cycle SignalYes
Control LocationFront
Automatic Temperature ControlsYes
Status LightYes, White
Electrical
Volts120
Power Cord IncludedNo
Amps6.75
Compatibility
Connectivity
Works With
Cycles and Options
Dishwasher Cycle SelectionsHeavy; Light/China; Normal; Quick Wash; Rinse Only
Lower Rack
Cushion Tip TinesYes
Fold Down TinesNo
StyleExtended
Utility BasketYes
GlidesRollers
Extras
Silverware Basket
CoversYes
Culinary BasketNo
LocationBottom Rack
TypeFull Length Non Splitable
Third Level Rack
GlidesN/A
RemovableN/A
Specifications
Quick WashYes
Delay StartYes
Required AccessoriesW10278635RP, W10685193
Product To Product Pairs
Extended Service Plan ParentEW04IW1Y, EW04IW2Y, EW04IW4Y
Country Of OriginTurkey
Features

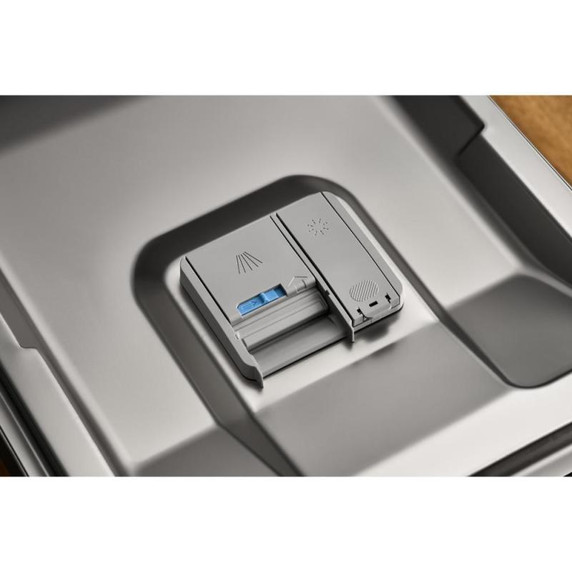

DispensersDetergent and Rinse Aid
Rinse Aid Dispenser Level IndicatorYes
Number Of Wash Levels4
Certifications
ULYes
Energy Star QualifiedYes
Cee TierTier I

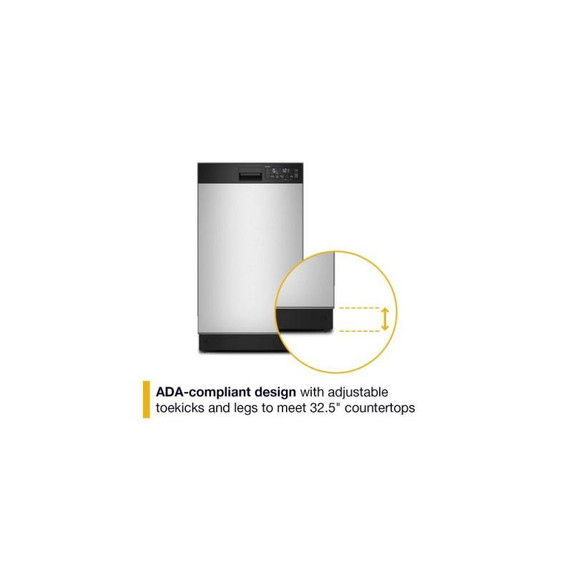

ADA CompliantYes
NSF CertifiedNo
Details
Interior LightNo

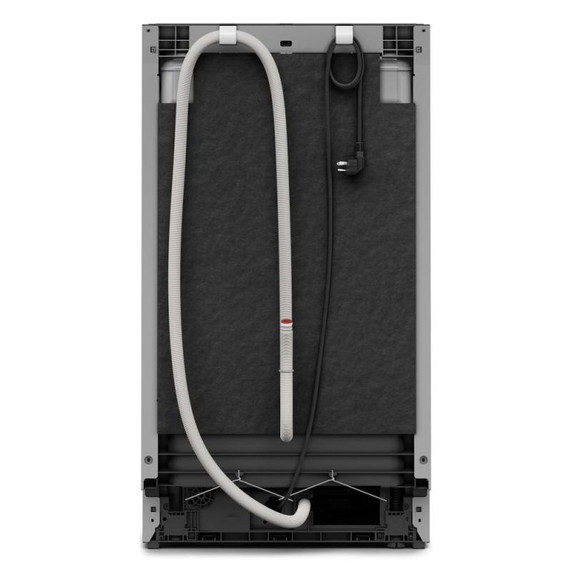

Hoses IncludedDrain Hose
Tub MaterialStainless Steel
Wash SystemFilter
Water FiltrationYes
Drying System TypeRecessed Heating Element
Number Of Racks2
Number Of Washarms2
Wash System TypeRemovable Filter
Tub StyleBuilt-in 18in. Tub
Cycles
Number Of Wash Cycles5
Options
Dishwasher Option Selections1-24 Hour Delay; Heated Dry; Hi Temp Wash
Carton Depth26.02"
Carton Height33.82"
Carton Width19.45"
Gross Weight68.78 lbs.
Net Weight65.0 lbs.

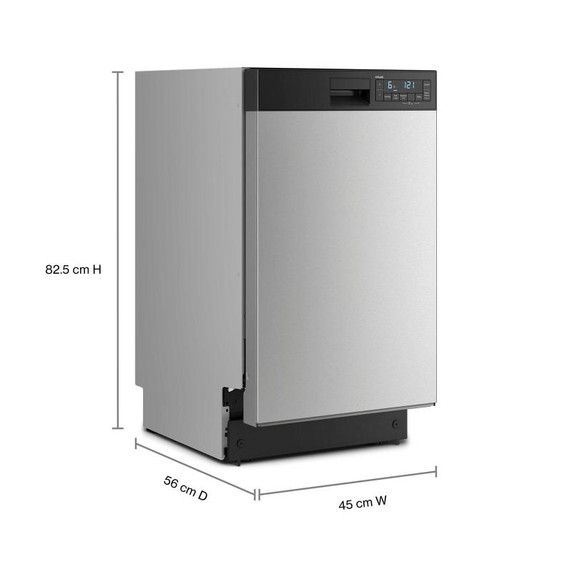

Depth Closed Excluding Handles22.0"
Depth Closed Including Handles22.44"
Depth With Door Open 90 Degree44.5"
Depth22.0"
Height33.5"
Maximum Height34.5"
Minimum Height32.5"
Width17.63"
This product has Extended Service Plans available**
