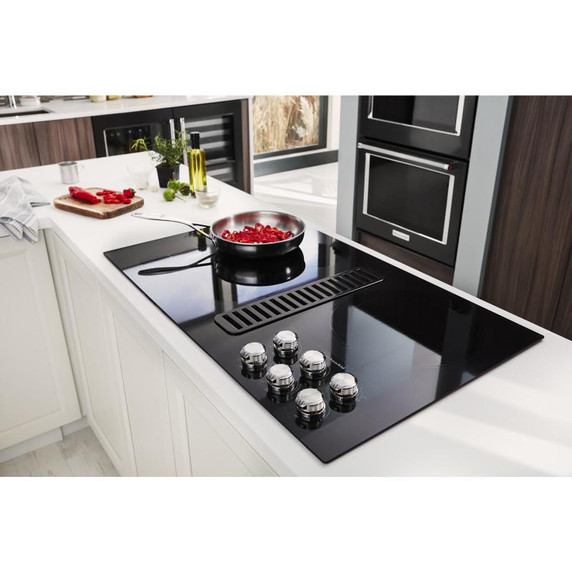

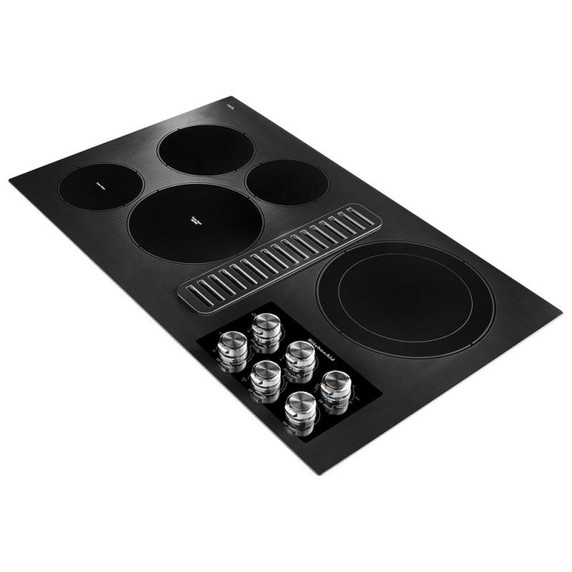

Downdraft VentilationIntegrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.

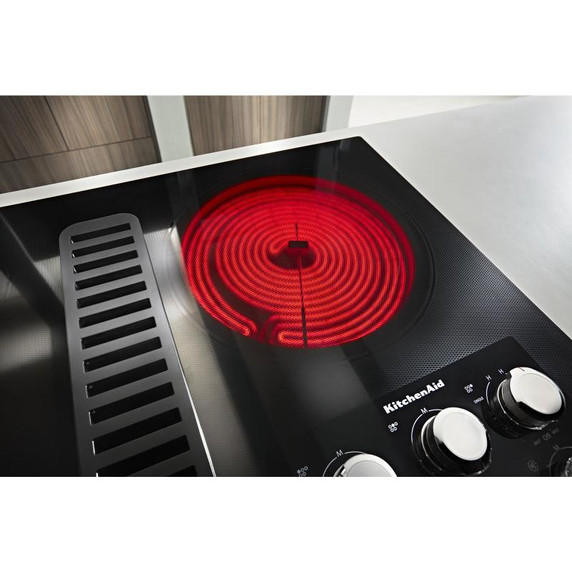

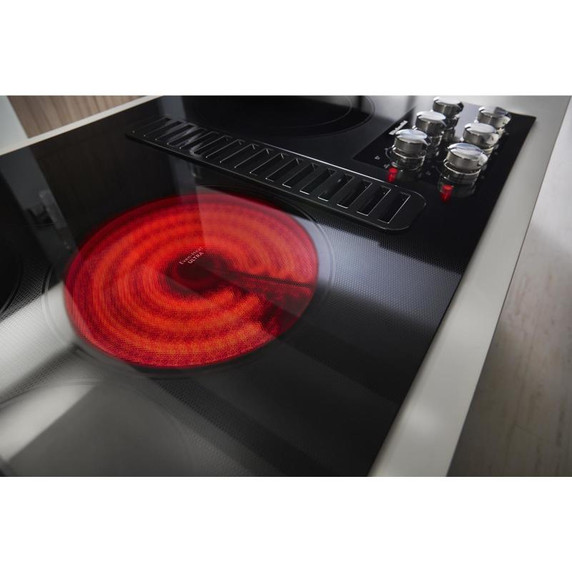

10'' Even-Heat™ Ultra Element with Simmer SettingProvides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.

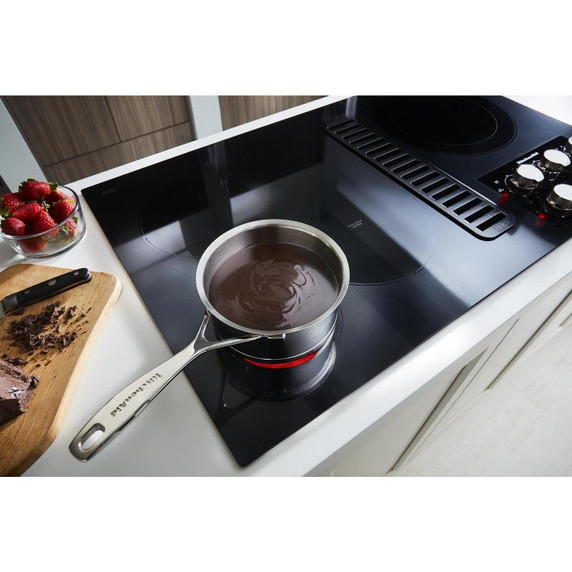

6'' Even-Heat™ Element with Melt SettingCombines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.

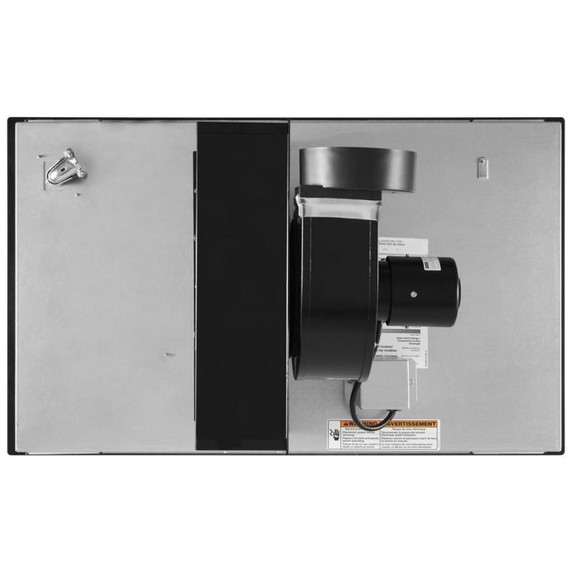

300 CFM Exhaust RatingHandles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
3-Speed Fan ControlCan be precisely matched to cooking needs, effectively removing steam, grease, and odours from the air.
CookShield Finish for Glass SurfaceProtects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.

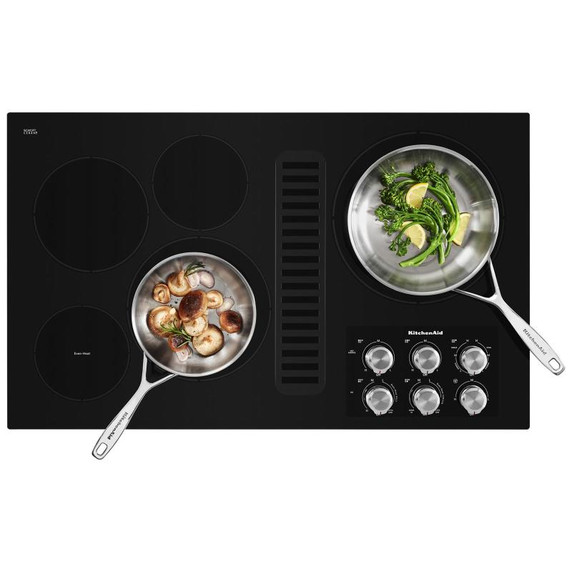

12''/9'' Double-Ring ElementLets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you’ll use only the 9-inch inner element.
Convertible to Duct-Free VentilationAllows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Power-On Indicator LightLets you know at a glance when an element is on.
Hot-Surface IndicatorProvides a clear indication that a cooking surface is on or still hot.
Pure Color Ceramic-Glass SurfaceComes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.

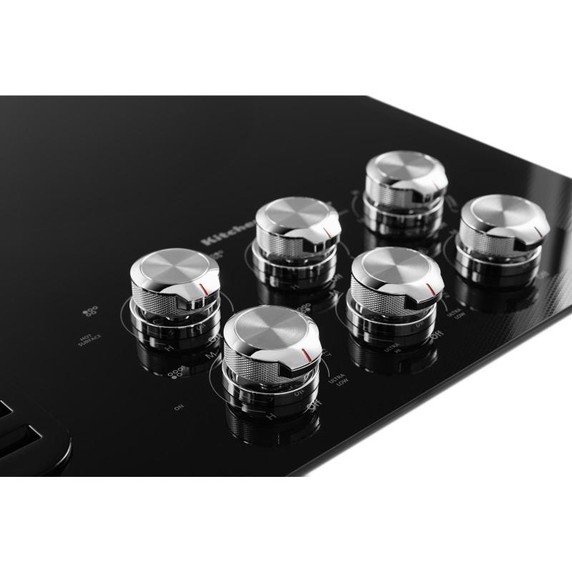

Stainless Steel KnobsEnhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
8'' Round ElementEfficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.
6'' Round ElementCan reach a power output of up to 1200 watts to handle your daily cooking needs.
Control TypeManual
Knob TypeMetal
Control LocationSide
Hz60
Power Cord IncludedNo
Amps40
Volts220
Fuel TypeElectric
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW08IW4Y, EW08IW2Y, EW08IW1Y
Optional AccessoriesW10355051B, W10177003, W10620783
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo
Downdraft VentYes
Installs Over Built In OvenNo
Kad CooktopCookshield Finish; Downdraft Ventilation; Even-Heat Melt Burner
ULYes
ADA CompliantNo
Size In36
Cooktop TypeDowndraft
Right Rear Element Burner TypeDual
Cooktop Element StyleCeran
Left Rear Element Burner TypeStandard

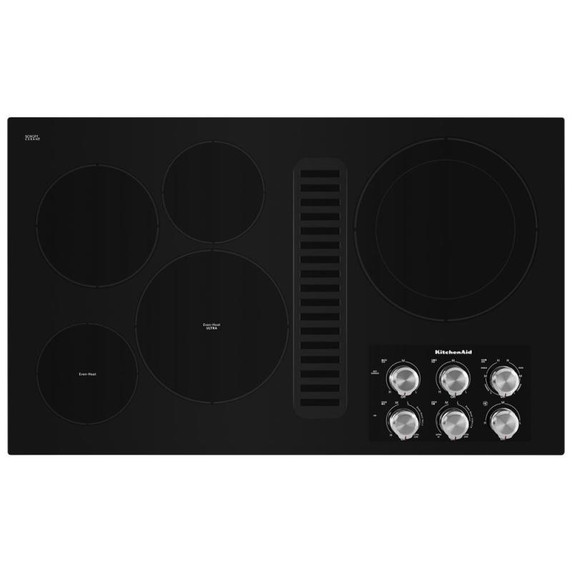

Number Of Cooking Element Burners5
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Center Front Element Burner Power3200W
Center Front Element Burner Size10in.
Center Front Element Burner TypeEven-Heat™ Ultra
Center Rear Element Burner Power1200W
Center Rear Element Burner Size6in.
Center Rear Element Burner TypeStandard
Left Front Element Burner Power1300W
Left Front Element Burner Size6in.
Left Front Element Burner TypeEven-Heat™
Right Rear Element Burner Power3000W
Right Rear Element Burner Size12in./9in.
Cfm Motor Class300

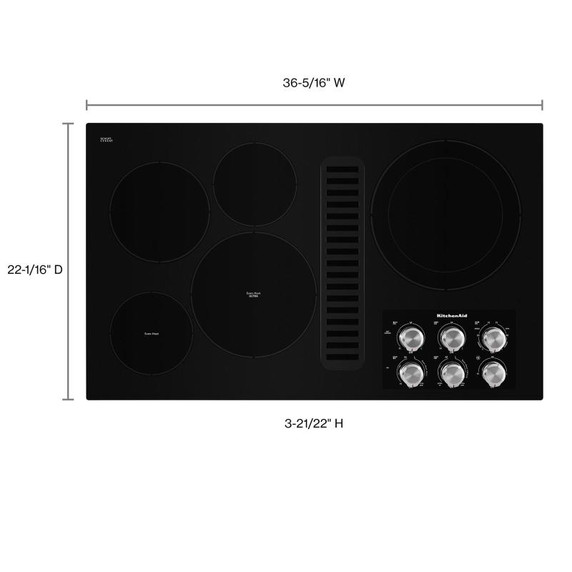

Depth22.06"
Height3.63"
Maximum Height18.75"
Net Weight57.0 lbs.
Width36.31"
Cutout Depth21.13"
Cutout Width34.56"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch41.5
