Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
6.0 Cu Ft. Total CapacityProvides a large combined cooking capacity that easily handles multiple dishes at once.
Professionally-Inspired Designcombines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.

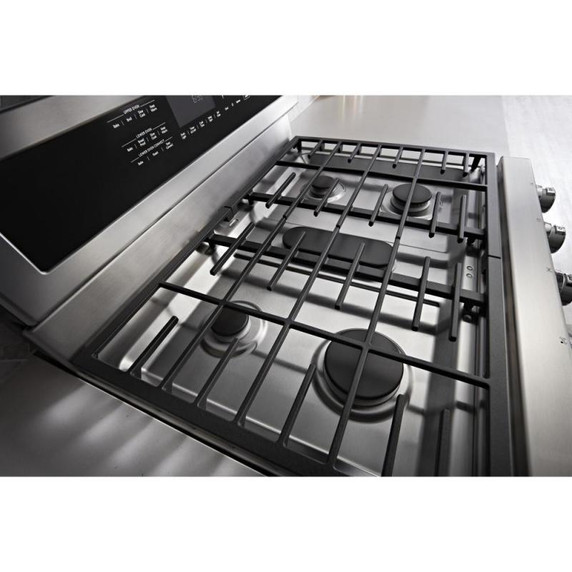

5 Burners (17k, 10k, 7.3k, 5k, 5k)Provides the perfect range of cooking power from 5,000 to16,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ Conversion SystemTakes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
Glass-Touch ControlsOffer an intuitive, easy-to-use touch screen experience.
SatinGlide® RackMove smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Hidden BakeCovers up the baking element, making it easier to wipe away spills.
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Volts120
Hz60
Amps15
Power Cord IncludedYes
Fuel TypeGas
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainCast Iron Grates
Optional AccessoriesW10432544
Extended Service Plan ParentEW09IW2Y, EW09IW1Y, EW09IW4Y
Product To Product PairsKVUB400GSS, KVWB400DSS, KVWB600DSS, KVWB600HBS, UVL5430JSS, KVUB600DSS
GriddleYes
Hot Surface Indicator LightNo
Automatic Convection Conversion Temperature AdjustYes
Power Outage CompatibleNo
Heating Element On Indicator LightNo
Kad RangeEasyConvect™ Conversion; Even-Heat™ True Convection; SatinGlide™ Racks
ULYes
Handle MaterialMetal
Handle ColorStainless Steel
Range ConfigurationFreestanding
Oven ConfigurationDouble Oven
Size In30
Range TypeFreestanding Double Oven
Broiler LocationTop of Oven
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Number Of Oven Lights1
Oven Light TypeIncandescent
Convection FunctionsBake; Roast
Convection Element TypeFan
Interior ColorBlue
Number Of Oven Racks1 Upper-2 Lower
Number Of Rack Guides2 Upper-5 Lower
Oven Control TypeElectronic Touch
Oven Cooking SystemThermal Upper-Convection Lower
Oven Rack Type1 Gliding Roll-Out, 2 Heavy Duty
Oven Control LocationRear Control
Bake Element Power10000BTUUpper-16000BTULower
Broiler Element Power10000BTU-Upper
Convection Element Power Watts500
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Right Front Element Burner Power10000BTU
Right Rear Element Burner TypeSealed Burner
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Number Of Grates2
Right Rear Element Burner Power5000BTU
Cooktop Surface ColorStainless Steel
Center Rear Element Burner Power7350BTU
Left Front Element Burner Power17000BTU
Grate DetailsCast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Carton Depth30.25"
Carton Height49.5"
Carton Width30.75"

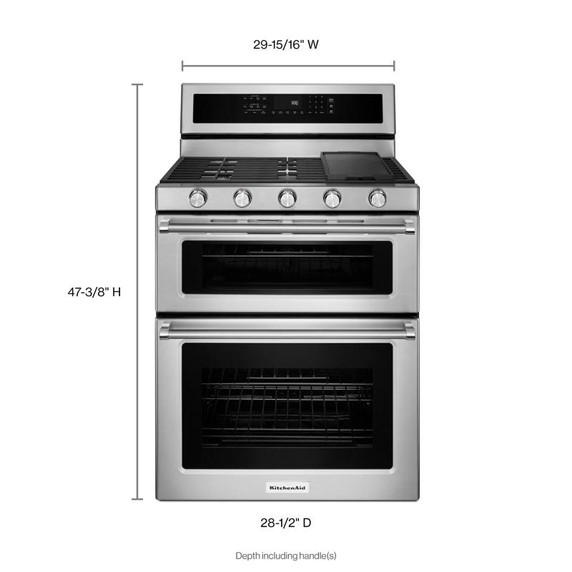

Depth Closed Including Handles28.5"
Depth With Door Open 90 Degree45.5"
Gross Weight275.5 lbs.
Height47.38"
Net Weight223.6 lbs.
Width29.94"
Capacity FT3 (cubic feet)6.0
