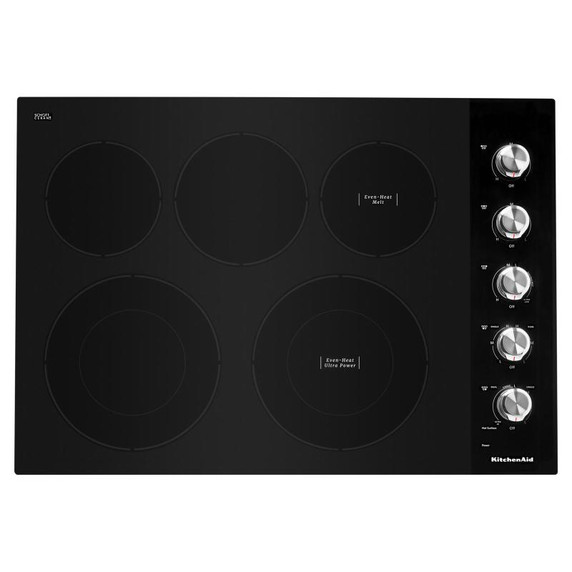

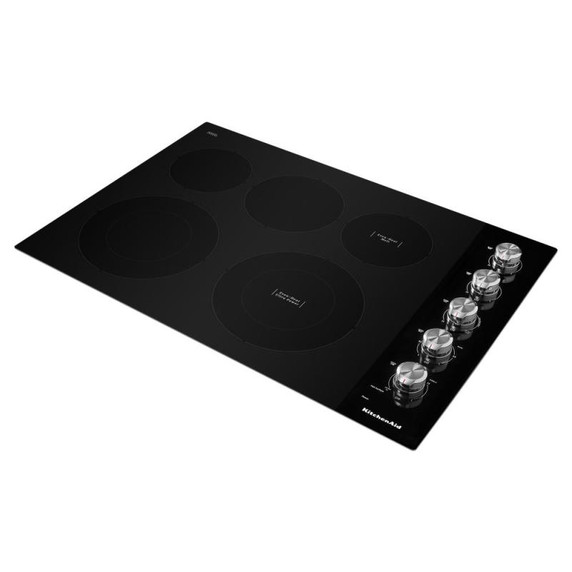

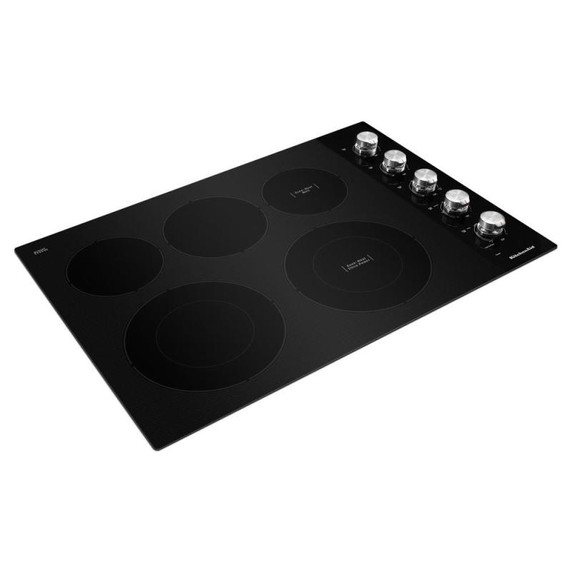

Kitchenaid® 30" Electric Cooktop with 5 Elements and Knob Controls KCES550HBL
KitchenAid
Kitchenaid® 30" Electric Cooktop with 5 Elements and Knob Controls KCES550HBL

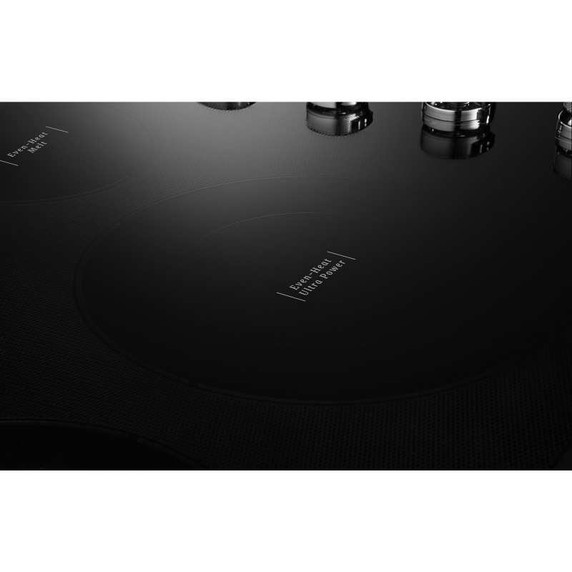

10'' Even-Heat™ Ultra Power™ Element with Simmer SettingProvides greater versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.

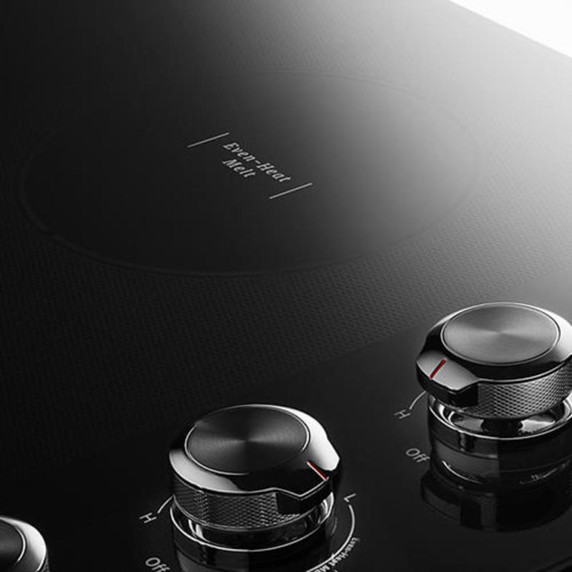

6'' Even-Heat™ Element with Melt SettingCombines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
10''/6'' Ultra Power™ Double-Ring Round ElementCombines two element sizes in one, making it a perfect fit for large stock pots or six-inch sauté pans alike, and ideal for a wide range of tasks from rapid boiling and searing to wok cooking.
8'' 1800-Watt Round ElementEfficiently heats a variety of pan sizes and can reach a power output of up to 1800-watts for every day use.
6'' 1200-Watt Round ElementCan reach a power output of up to 1200-watts to handle your daily cooking needs.

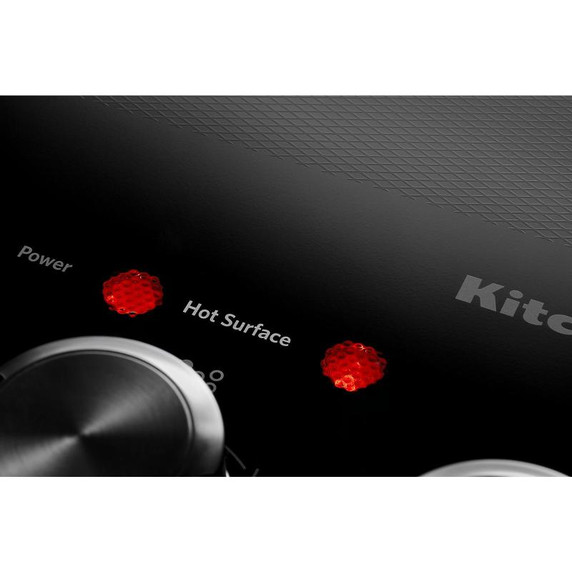

Hot Surface IndicatorProtects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.

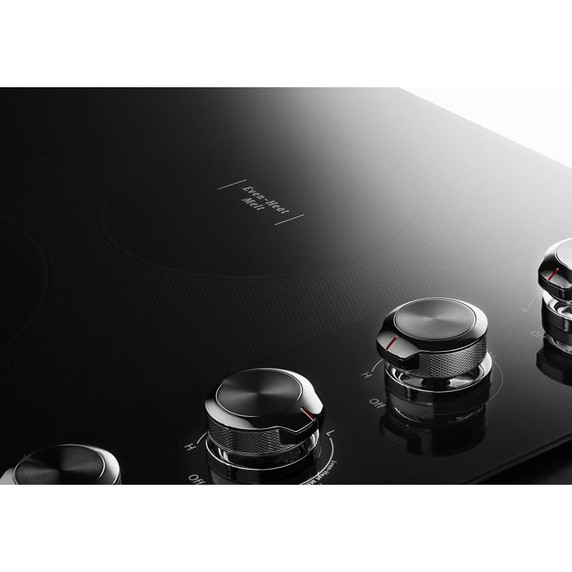

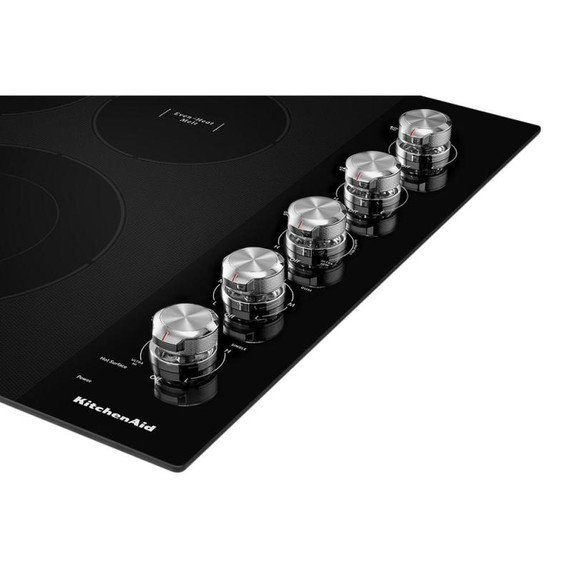

Metal Control KnobsSubstantial, professionally-inspired stainless steel knobs easily adjust the cooktop's elements through an infinite number of heat settings, offering responsiveness and flexibility in control.
Control LockHelps prevent unintended use and makes it easier to clean the control panel.
Specifications
Country Of OriginUSA
Optional AccessoriesW10355051B
Extended Service Plan ParentEW07IW1Y, EW07IW2Y, EW07IW4Y
Product To Product PairsKVWB600HBS, KXD4630YSS, KVUB600DSS, KVUB400GSS, UVL5430JSS, KVWB600DSS, KVWB400DSS
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Right Front Element Burner Size10in./6in.
Center Rear Element Burner TypeStandard
Center Rear Element Burner Size8in.
Center Rear Element Burner Power1800W
Left Front Element Burner Power3000W/1900W
Left Front Element Burner Size10in./6in.
Right Front Element Burner Power3200/2300W
Right Rear Element Burner Power1300W
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenKOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Controls
Control TypeManual
Knob TypeMetal
Control LocationSide
Refinements
Kad CooktopADA Compliant

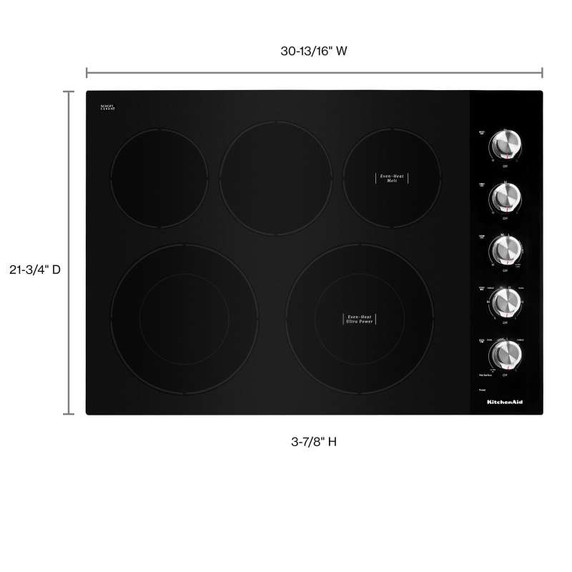

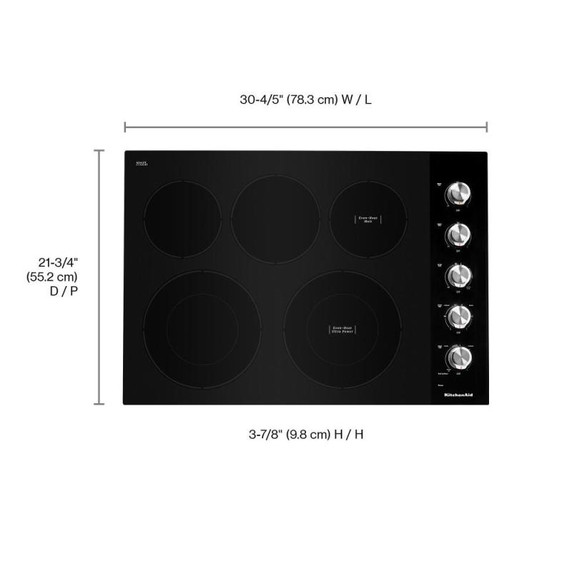

Depth21.63"
Height5.25"
Maximum Height5.25"
Net Weight41.0 lbs.
Width30.38"
Cutout Depth20.38"
Cutout Width29.06"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch35.0
