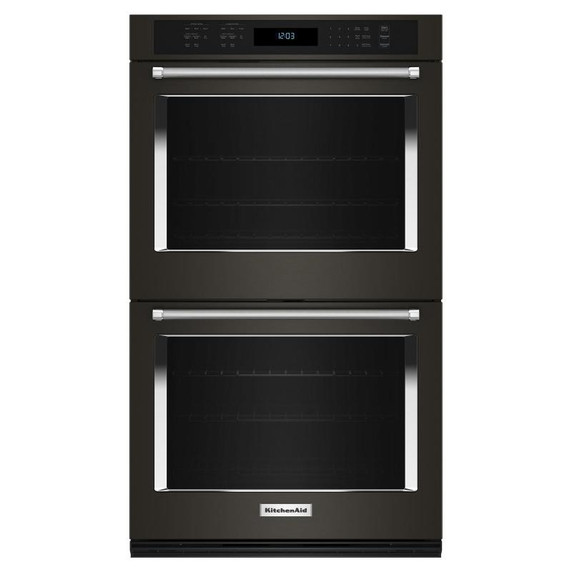

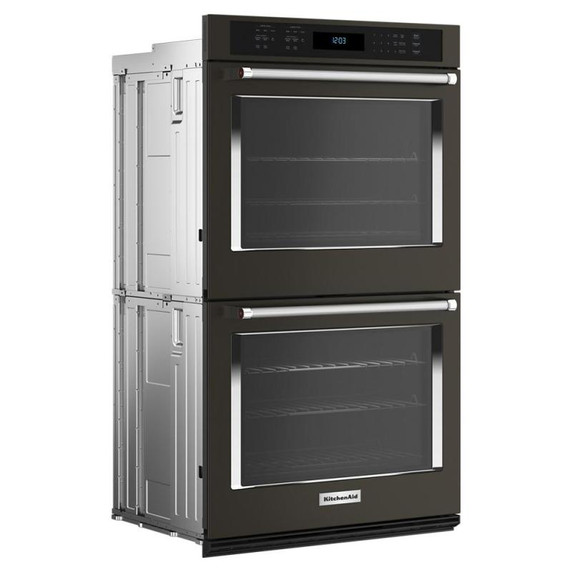

KitchenAid® 27" Double Wall Oven with Air Fry Mode KOED527PBS
Air Fry ModeUses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
*When compared to deep frying.
Dishwasher-Safe Air Fry BasketAllows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
Even-Heat™ True ConvectionEVEN-HEAT True Convection for consistent baking and roasting
Integrated Meat ThermometerTakes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
Even-Heat™ PreheatRaises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

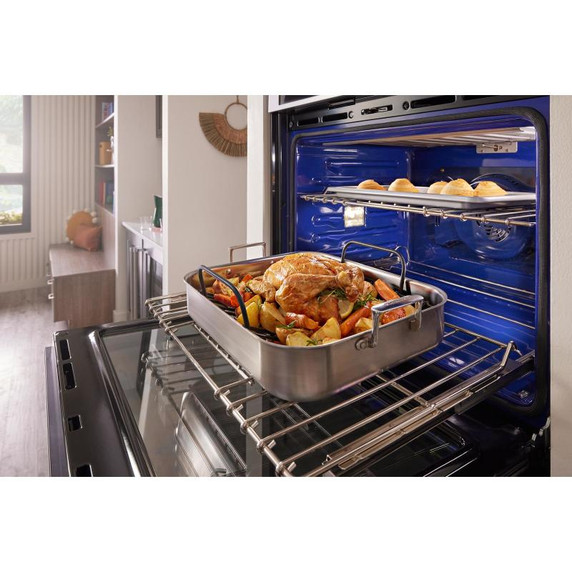

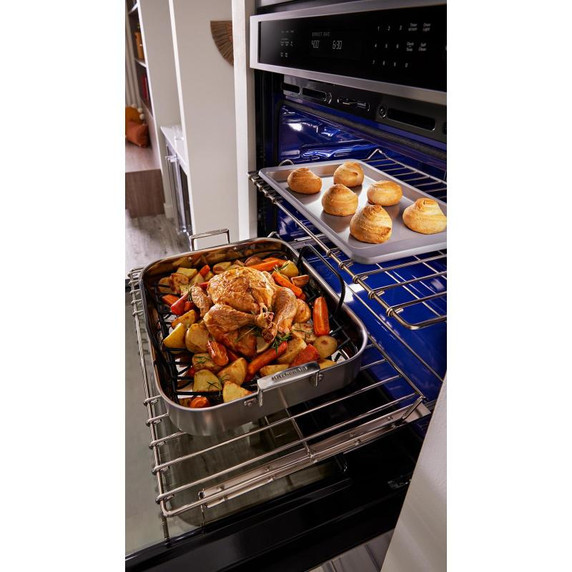

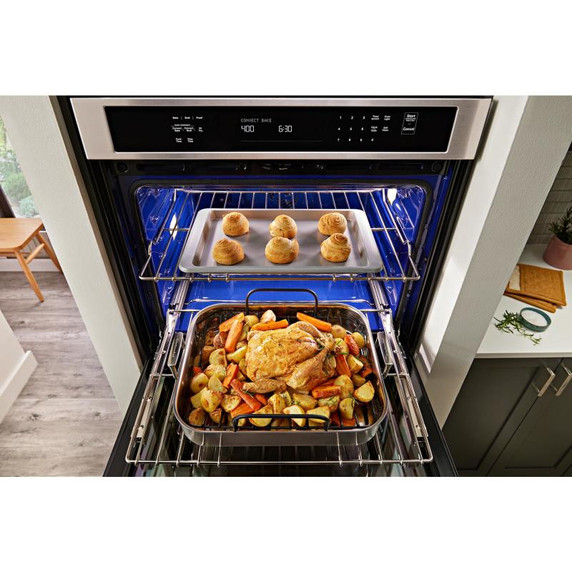

SatinGlide™ Roll-Out Extension RackMakes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
FIT System Limited GuaranteeAllows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
*On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
4,000-Watt Broil ElementUses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.

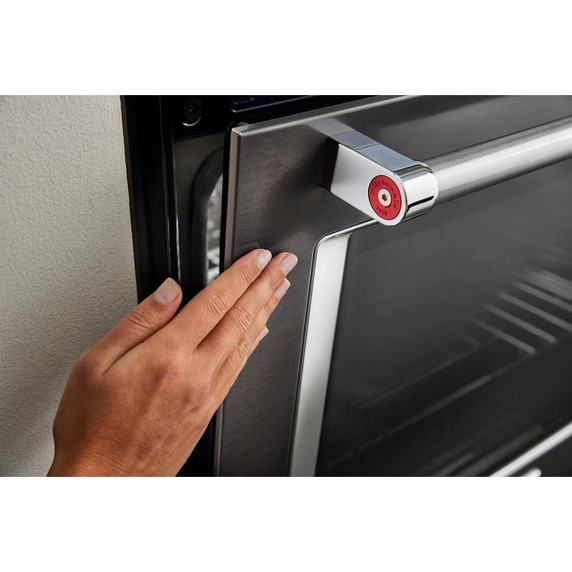

Self-Close DoorsFeature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.

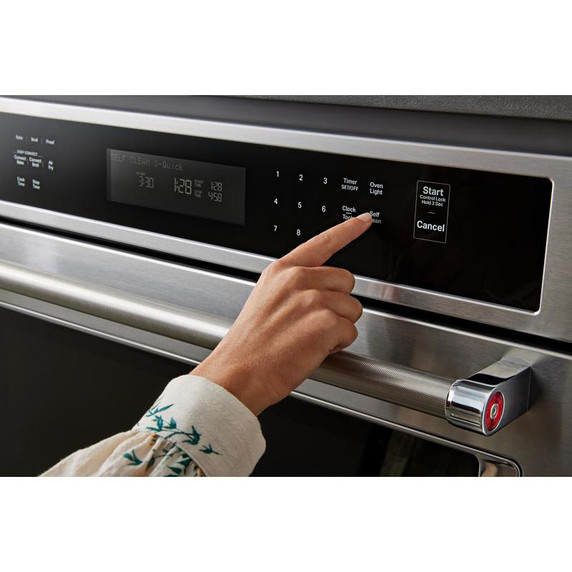

Self-Cleaning CycleUses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
Star-K CertifiedTo meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
What's in the boxDouble Wall Oven includes
- Dishwasher-Safe Air Fry Basket
- Integrated Meat Thermometer
PrintShield™ FinishResists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Specifications
Country Of OriginUSA
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11570326, W11594554
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
Certifications
ULYes
CULYes
Energy Rating Kwh Year325
Controls

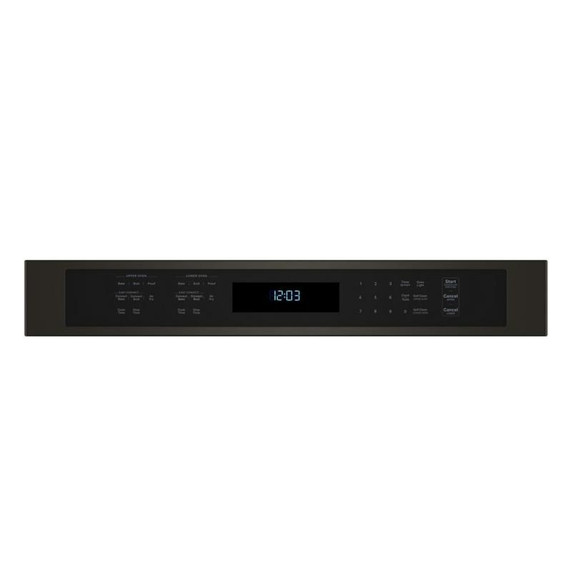

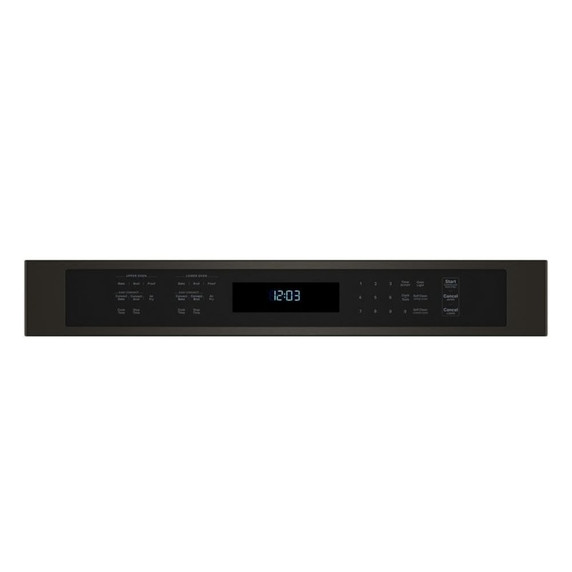

Control TypeElectronic
Display ColorWhite
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Details
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Interior CoatingPorcelain
Light ControlOven Light Touch Pad
Number Of Broil Elements1
Light TypeHalogen
Interior ColorBlue
Convection FunctionsBake; Broil; Convection Conversion
Bake Element Power2800WBoth
Broiler Element Power4000WBoth
Lower Oven Interior Depth In Inches19.0
Lower Oven Interior Height In Inches18.0
Lower Oven Number Of Oven Lights2
Number Of Bake Elements2
Number Of Lower Oven Racks3
Number Of Lower Rack Guides6
Number Of Upper Oven Racks3
Number Of Upper Rack Guides6
Upper Oven Interior Depth In Inches19.0
Upper Oven Interior Height In Inches18.0
Upper Oven Interior Width In Inches22.0
Upper Oven Number Of Oven Lights2
Convection Element Power Watts3200 Both
Lower Oven Interior Width In Inches22
Configuration and Overview
Fuel TypeElectric
Features
Language ConversionEnglish/French/Spanish
Power On Indicator LightYes
Configuration

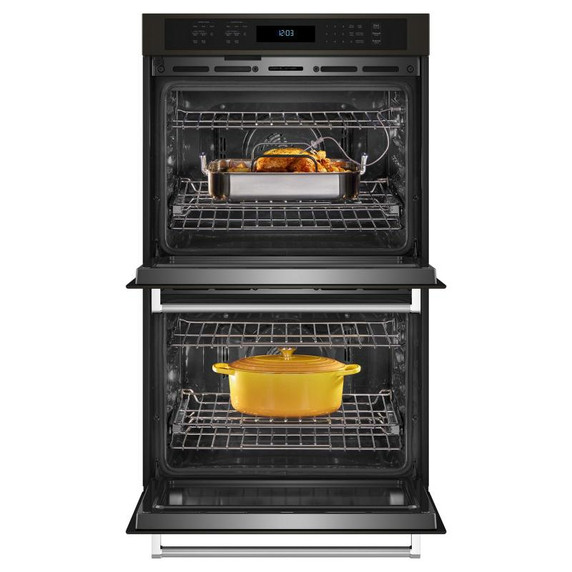

Oven ConfigurationDouble Oven
Compatibility
Connectivity
Description
Size In27
Energy
Annual Energy Usage Kwh325
Carton Depth30.8"
Carton Height53.5"
Carton Width31.5"

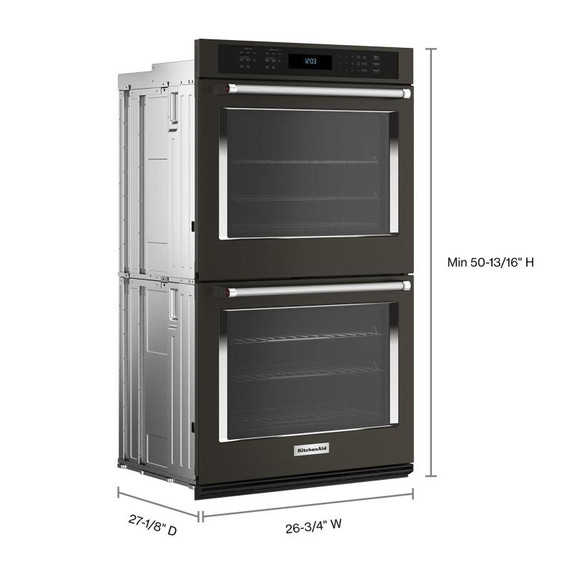

Depth Closed Excluding Handles24.5"
Depth Closed Including Handles27.13"
Depth With Door Open 90 Degree46.75"
Depth27.13"
Gross Weight240.0 lbs.
Height50.81"
Net Weight218.0 lbs.
Width26.75"
Cutout Depth24.0"
Cutout Height50.25"
Cutout Width25.5"
Capacity FT3 (cubic feet)8.6
